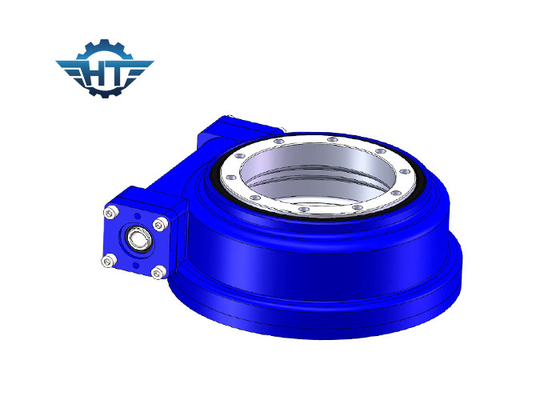

Productdetails:
|
| Toestelverhouding: | 57:1 | Type: | Ingesloten |
|---|---|---|---|
| Toepassing: | bouwmachines en zonne-energie | Bestuurder: | hydraulische motor en elektrische motor: |
| IP Rang: | IP66, IP65 | Kleur: | zoals gevraagd |
| Nauwkeurigheid: | 0,01 graad | efficiëntie: | 40% |
| Markeren: | solar tracker drive,slewing gear |
||
Advantages
1. High backholding torque to improve the solar tracking system's safety
2. 360 degree rotating range
3. Enveloping worm drive inside
4. Multi tooth contact to ensure high load
5. Self-locking function
Technical Data
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (N.m) | TiltingTorque (N.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Effeciency | Precision (degree) | IP | Working Temp.(℃) | Self-locking | Weight (kg) |
| 3" | 600 | 5800 | 2100 | 3.6 | 15 | 31:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 12kg |
| 5" | 800 | 9200 | 5000 | 16 | 27 | 37:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 18kg |
| 6" | 2250 | 20400 | 11200 | 50 | 80 | 51:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 28kg |
| 7" | 1750 | 13200 | 7000 | 34 | 58 | 57:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 32kg |
| 9" | 4300 | 27200 | 16000 | 60 | 130 | 61:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 52kg |
| 12" | 5600 | 40560 | 25000 | 77 | 190 | 78:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 65kg |
| 14" | 6750 | 44200 | 48000 | 110 | 230 | 85:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 88 kg |
| 17" | 9460 | 53040 | 67000 | 142 | 390 | 102:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 135 kg |
| 21" | 16000 | 65000 | 89000 | 337 | 640 | 125:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 192 kg |
| 25" | 21450 | 89000 | 112000 | 476 | 950 | 150:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 251 kg |
Remark: For more detailed dimensions and parameters, please refer to our sales drawings.
Customized Services
1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.
